PVC hose with embedded spring KF 40/ up to 50 000

Stáhnout ve formátu PDF

Zák. číslo: Request PVC Hose KF 40

PVC hose is structural component designed for flexible connections in vacuum instalations. Flexible robust hose is reinforced with embedded steel coil and hose cover is from transparent PVC. Working temperature is from - 5 to 65 °C. The minimum bending radius is applicable for a temperature of 20 °C. The bending radii increase at larger temperatures up to factor 1,5 at 50 °C.


Technické údaje

  • Inner tube PVC, transparent
  • Casing steel coil
  • Surface of hose Smooth inner and outer walls
  • DN 40
  • Bending radius 110 mm
  • Dimensions (L) up to 50 000 mm
  • Pressure range 1 x 10-4 hPa to 500 hPa over pressure
  • Temperature range -5 to 65 °C

Fotogalerie

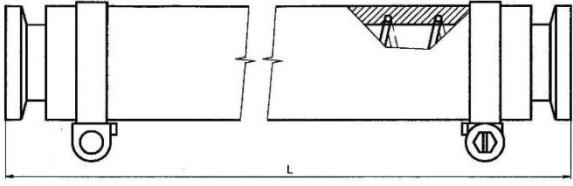

PVC hose with embedded spring KF 40/ up to 50 000
PVC hose with embedded spring KF 40/ up to 50 000

Lze použít jako příslušenství k těmto produktům
