Diaphragm pump VM 20 Q

Stáhnout ve formátu PDF

Zák. číslo: 2304 00 0000

The vacuum pump works as a source of underpressure or as a pump for non-aggressive and non-explosive, dirt-free gases and wherever pure oil-free operation is required. Pumps can be used in laboratories, health, food, packing facilities, and the like.


Technické údaje

  • Limit suction pressure at serial connection < 400 Pa
  • Pumping speed at 105 Pa when serial connection Cca 20 l/min
  • Output hose Js 6
  • Input hose Js 9
  • Engine power 180W
  • Motor power supply 230V/50Hz
  • Weight 11,7 kg

Fotogalerie

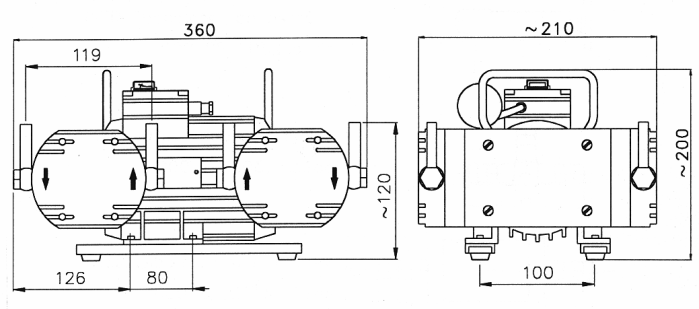

Diaphragm pump VM 20 Q
Diaphragm pump VM 20 Q
