Vacuum pump VRO 4/21

Stáhnout ve formátu PDF

Zák. číslo: 2722 00 0000

The primary transport two-stage rotating oil vacuum pump is designed for pumping enclosed volume of 105 Pa by pumping rate of 4 m3 / h. The possibility of using them is in the laboratory and industrial environments.

The intake air must not contain any mechanical impurities, aggressive gases and vapors and do not form with oil-filled explosive or aggressive mixture. Vacuum pump drives the single-phase motor, which forms with pump a compact pump unit.


Technické údaje

  • Number of stages 2

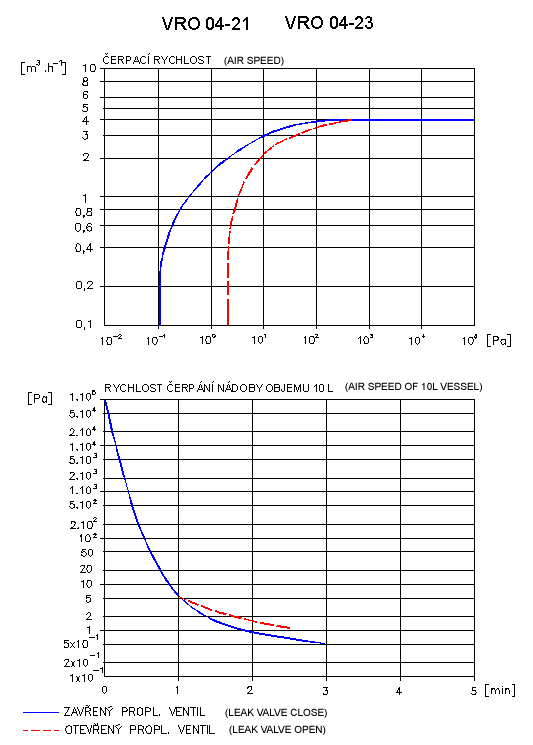

  • Pumping speed at preassure of 105 Pa and temperature of vacuum pump 55° C 4 m3/hod
  • Limit pressure of non-condensable gases with closed gas ballast < 1 x 10-2 Pa
  • Ultimate vacuum with closed gas ballast (total pressure)  < 1 x 10-1 Pa
  • Ultimate vacuum with opened gas ballast (total pressure)  < 2 Pa
  • Maximal partial pressure of pumping water vapors 4 x 103 Pa
  • Maximal outlet pressure 1,5 x 105 Pa
  • Tightness of the automatically closed valve at pressure differential 104 Pa 10-1 Pa.l.s-1
  • Minimal temperature for cold start 12° C
  • Maximal temperature of oil inside vacuum pump 60° C
  • Total leak rate of vacuum pump 10-3 Pa.l.s-1
  • Noise level with closed gas ballast and temperature of vacuum pump above 40° C 60 dB (A)
  • Coverage of device IP 40
  • Outlet connection KF 25
  • Inlet connection KF 25
  • Recommended Oil SN 56
  • Standard oil capacity (max/min)  500/250ml
  • Cooling of vacuum pump Air
  • Voltage 230 V, 50 Hz
  • Motor power 250 W

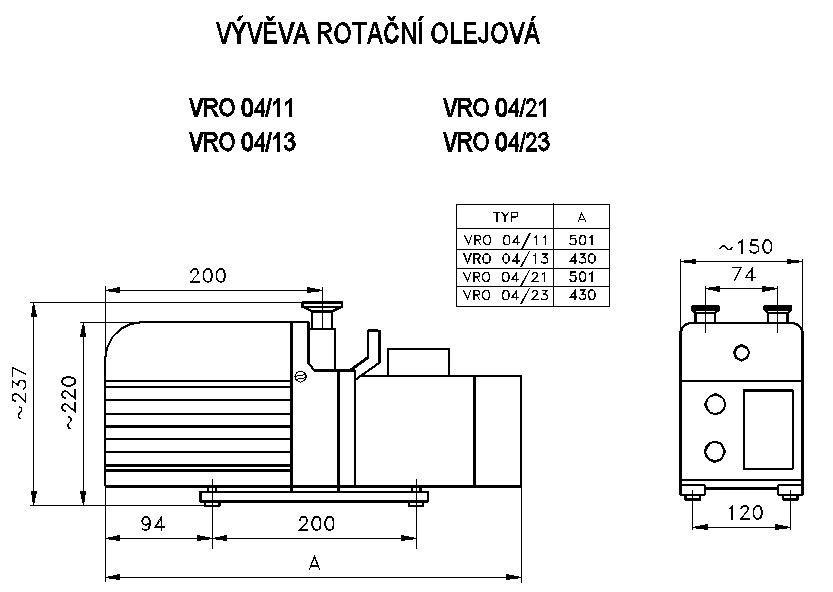

  • Dimensions 501 x 150 x 237 mm
  • Weight Cca 24 kg
